20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine

20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine

  • 20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine
  • 20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine
  • 20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine
  • 20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine
  • 20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine
  • 20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine
20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine
Product Details:
Place of Origin: China
Brand Name: Newlystar
Certification: CE RoHS
Model Number: XY-C01
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiable
Packaging Details: Selling Units:Single item Single package size: 38.5X36.5X16 cm Single gross weight:5.000 kg Package Type:standard carton
Delivery Time: Delivery Time: 10 workdays
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Type: Anesthesia Equipments & Accessories Instrument Classification: Class II
Use Crowd: Snoring Crowd And Sleep Apnea Crowd Pressure: 4-20H2O
Atmospheric Pressure: 77-101kPa Water Capacity: Less Than 200ml
Colour: Gray Net Weight: 2.0kg
After-sale Service: Online Technical Support Product Warranty: 2 Years
High Light:

Anesthesia Sleep Apnea Bipap Machine

,

101kPa Sleep Apnea Bipap Machine

,

20H2O Cpap Bipap Machine

Automatic CPAP Bipap Machine Sleep Apnea Bipap Machine





Product Information

Certification CE/ISO13845 Product Type Bipap Apparatus
Brand Olive model OLV-DS6
Work Mode CPAP, Auto, S, T, ST Product Color Silver
Product Sound <28 dB Product Screen 2.8 inch TFT, 320 x 240
total weight 1.6kg Packing Material Carton box and foam
Data Storage SD Card DC Voltage 24VDC, 2.5A
Backup Rate 5-50/min, Adjustable Water Capacity 220ML max
Inspirate Triggle 1-5 level EPAP 4-20 cmH2O







Scope of application

1. Night snoring, sleep apnea/obesity hypoventilation syndrome, nocturnal hypoxemia syndrome; 2. Daytime sleepiness, memory loss, mental paralysis and personality changes, snoring (sleep snoring) cerebral hypoxia Disease; 3. Respiratory medicine, otolaryngology, sleep room (center) treatment of sleep-disordered Bipap; 4. Neurology treatment of various causes of respiratory insufficiency, respiratory disorders; 5. otolaryngology for upper respiratory tract surgery Respiratory support.





Product Description

The device has 2 working mode CPAP and Auto CPAP, when the device is set to Auto CPAP Bipap machine, the device will track every breath during sleep, automatically adjust a proper output pressure for user to make a comfort treatment; While the device is set to CPAP mode, then the machine will run at the preset fixed pressure.The humidifier cooperates with the host to provide the user with the air of suitable temperature and humidity to avoid drying of user's nasal mucosa and make comfort treatment. The host controls the humidifier's turning on/off, the principle of which is to heat the water in the chamber and make the air inhaled by the user with suitable temperature and humidity.





Do Not Overfill The Water Tub as Water May Enter The Device And Air Tubing!


1. Place the device on a stable level surface.

2. Plug the power connector into the rear of the device. Connect one end of the power cord into the power supply unit and the other end into the power outlet.

3. Connect the air tubing firmly to the air outlet located on the rear of the device.

4. Open the water tub cover and fill it with distilled water up to the maximum water level mark. Do not fill hot water in the water tub.

5. Close the water tub cover.

6. Connect the free end of the air tubing firmly onto mask. For detailed information, read the mask user guide.

7. Physician should ensure the compatibility of the equipment and all of the parts and accessories used to connect to the patient before use; should ensure that the therapeutic pressure settings were determined for the patient individually with the configuration of the equipment to be used, including accessories; and should periodically reassess the setting(s) of the therapy for effectiveness.The equipment must not be covered or positioned in such a way that the operation or performance of the equipment is adversely affected.



20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine 0

Product Structure
20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine 1
1-Air outlet 2-SD card 3-Power interface 4-Air inlet
5-Humidification tank 6-Humidification tank switch 7-Display 8-Switch button



20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine 2

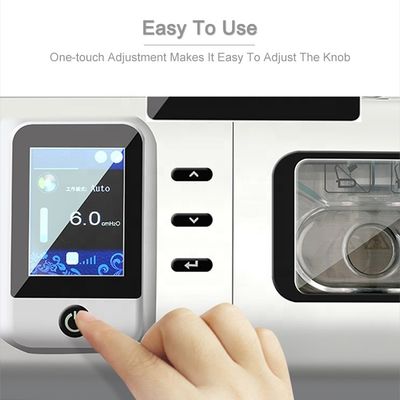

Product Advantages

20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine 3

20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine 4

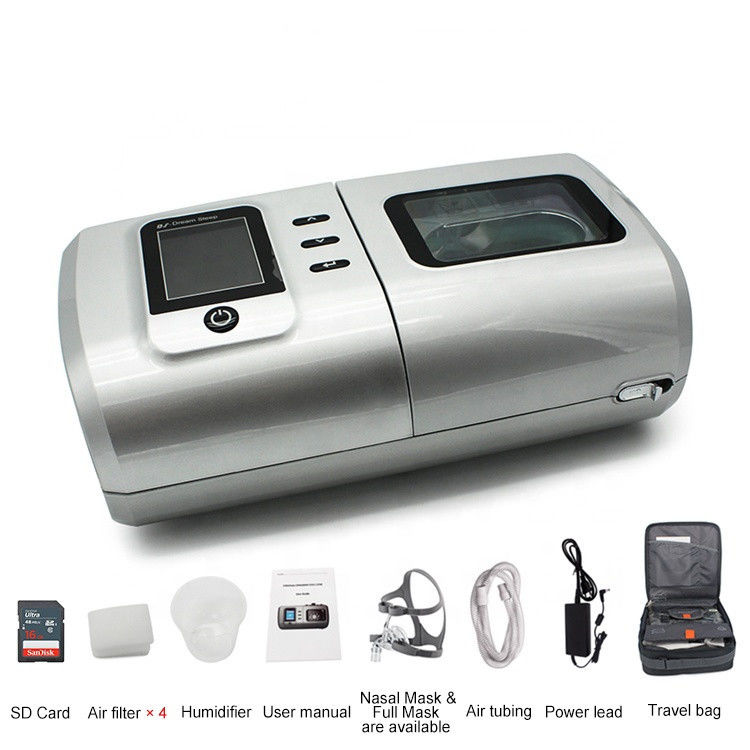

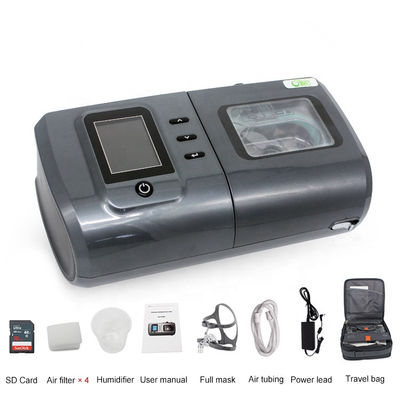

Product Accessories

20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine 5
Use Method

20H2O 101kPa Anesthesia Sleep Apnea Bipap Machine 6
