Name: Color Doppler Wireless Ultrasound Scanner
Brand: Newlystar
SKU: XY-WCP05-C3

Home Products Electronic Medical Equipment

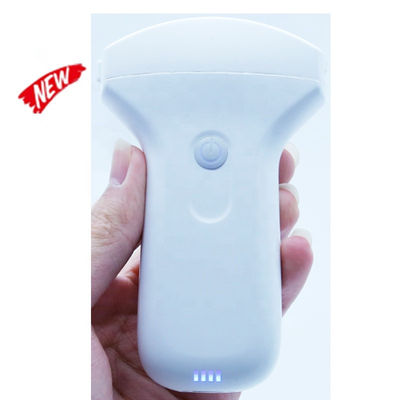

Color Doppler Wireless Ultrasound Scanner

Product Details:

Place of Origin:	China
Brand Name:	Newlystar
Certification:	CE,ISO
Model Number:	XY-WCP05-C3

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	1pc/box
Payment Terms:	L/C, T/T
Supply Ability:	1000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	Ultrasonic Transducer, Convex/Linear Color Doppler	Platform:	Android, Windows, Iphone
Transducer Frequency:	Convex 3.5MHz/5MHz;Linear Head 7.5MHz/10MHz	Max Scanning Depth:	Convex 100mm~305mm; Linear 20~100mm
Display Model:	B, B/M, B+Color, B+PDI, B+PW	Element:	128
Cinplay:	Auto And Manual, Frames Can Set As 100/200/500/1000	Working System:	IOS/Android /Windows
Charging Model:	USB/Wireless Charging	After-sale Service:	NONE
High Light:	basal temperature thermometer , blood sugar measuring device

Portable Handheld Android IOS Color Doppler Wireless Ultrasound Probe Scanner

Product Description

Introduction:

Innovative design in 2020. Both USB and WIFI connected to Platform.The Smallest Color Ultrasound Probe,Most Suitable for POCT;As a visualization tool for clinicians,makes the clinical procedures more Confident,more Easy, more Efficient, more Precise,more

Safe,more Standardized and lower Cost, lower Anxiety,less Pain.
Make ultrasound easier and more efficient to use.
Provide visual images during any clinical procedures.

Features:Wifi connection + USB connection for more stable transmission. Built-in battery, when connected to wifi, it can be charged while working.
The Smallest and lightest, easy to carry and operate.
Advanced digital imaging technology,exceptional image quality.

Durable design,Ergonomic design.
Intelligent terminal platform, powerful expansion functions on application, storage,

communication.
Software is free for life.
High cost-effective.
Can be integrated into other medical devices.
Can support OEM/ODM.

Technical Specification

Type	Convex /Linear
Scanning mode	Electronic array
Display mode	B, B/M, B+Color, B+PDI, B+PW
Frequency	Convex:3.5/5.0MHz; Linear:7.5/10MHz
Display Depth	Convex:90~305mm; Linear:20~100mm
Elements	128
Probe Radius	Convex: 60mm
Probe Length	Linear: 40mm
Wifi type	2.4G/5G
USB type	Type C
Image Adjust	B:GN(B gain) 30-105 D(depth) 20-305mm ENH(enhancement) 0-4 DR(dynamic range) 40-110 F(frequency) 3.5-10MHz TGC:8 segments Color/PW:PRF,WF,Steer,Box size
Measure	B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC) B+M: Heart Rate, Time, Distance B+PW:Velocity, Heart Rate(2), S/D
Cinplay	Auto and manual, frames can set as 100/200/500/1000
Puncture assist function	in-plane puncture guide line, out-of-plane puncture guide line
Image/video Storage	Store on mobile phones,Tablet PC
Power	built-in lithium battery
Replaceable	Yes
Standby	1.5~4h
Charging mode	Usb
Bootup	Platform dependent, generally <5 seconds
Software	Android / iOS / Windows Download for free
Standard Configuration	Host:1pcs, USB cable:1pcs
Dimensions	Convex: 115(h)x70(w)x20(d)mm Linear: 115(h)x60(w)x20(d) mm
Package size	185(w) 55(h) 105(d)mm
Net weight	Convex: 125g Linear:102g
Gross weight	600g

Application

* POCT,Outpatient,Emergency,Ambulance,Clinic,Anesthesia,ICU,Intervention,Tumor,Catheter:

Visual image for  Abdominal,Lung,Kidney,Urology,Obstetrics/Gynecology,Superficial,Small Parts, )MSK,Breast,Thyroid,Vascular;

* Visual guidance of

cvc, picc, port, long and midline catheters, radial artery, femoral artery and vein, nerve block and other puncture visual

guidance.

* Renal and Hemodialysis center:

Establishment and maintenance of vascular access, visual guidance of Dialysis puncture.

* Pain, rehabilitation, Physiotherapy:

Visual guidance of diagnosis and treatment, such as soft tissue lysis, effusion extraction, etc.

* Plastic surgery:

Visual guidance of cosmetic surgery.

Newlystar (Ningbo) Medtech Co.,Ltd. is one of the leading supplier for Pathological Analysis Equipments,
Diabetes Treatment Equipment and Finished Pharmaceutical from China. With a proven track record of
passed years,Newlystar-Medtech has been recognized by her customers as a high-quality and reliable
supplier notonly on products, but also on assistance for audit and improvement of GMP level, quality
management system, EHS management system and registration dossier support, etc.The essence of
Newlystar-Medtech's activites, is a commitment to her customers with professional service and high-quality
products with effective cost and innovative solutions.

All medical product work in Newlystar-Medtech like a bridge link the customers and Chinese manufacturers,
especially, their professional working is to make the formulation manufacturers who is familiar with
Chinese medical product to understand well the international requirement,to ensure the success of customers.
The advantages on professional working and strongly representative base on first-class manufacturing partners
in China, enable Newlystar-Medtech to provide her customers with a wide range and high-tech products,
best services and capabilities for their actions in tender, distributing and improvement in their national healthcare
system. Newlystar-Medtech also dedicates herself to sourcing quality medical products for Chinese market.
