Name: 600G 12 Lead Electronic Ecg Machine
Brand: Newlystar
SKU: XY-UN8003
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (126 reviews)

Home Products Electronic Medical Equipment

600G 12 Lead Electronic Ecg Machine

Product Details:

Place of Origin:	China
Brand Name:	Newlystar
Certification:	CE,ISO
Model Number:	XY-UN8003

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	1pc/carton
Delivery Time:	10 Days
Payment Terms:	L/C, T/T
Supply Ability:	500 Piece/Pieces per Month

Contact Now

Detailed Product Description

Type:	Pathological Analysis Equipments	After-sale Service:	Repair And Replacement
Display:	4.3 Inch Tocuscreen	Channel:	3
Working Mode:	Manual/Auto/Arrhythmia	Lead:	12
Interface:	USB/RS232/SD	Paper Width:	80mm
Dimension:	31026085mm	PC Software:	ECGview
Remote Updating:	Support
High Light:	basal temperature thermometer , blood sugar measuring device

ECG 600G 12 Lead 3/6 channel Portable rechargeable battery Electronic ECG Machine with Touchscreen

Title goes here.

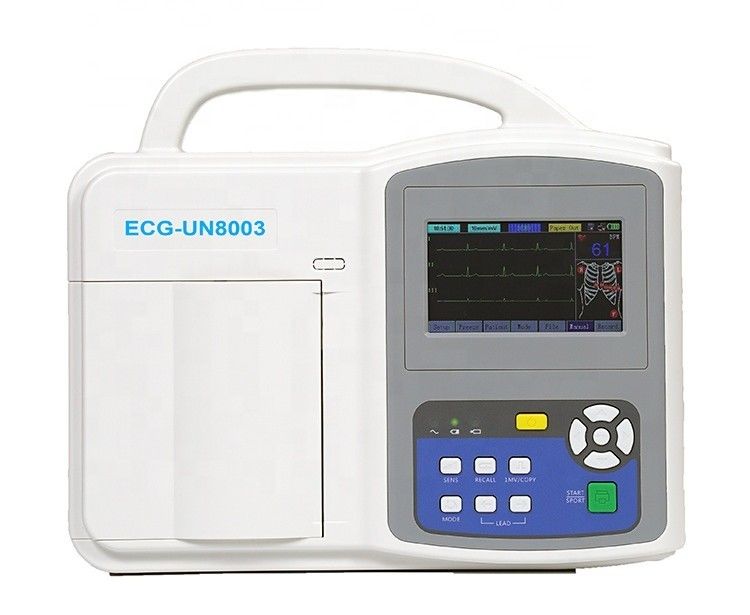

UN8003 is a portable and high quality 3-channel ECG, which offer not only normal thermal printing but also external printing solution. It can used in hosipital. Clinic and emergencyies.

Products Features

 3 channel ECG machine with automatic interpretation

 Manual/Auto working Modes

 Simultaneous 12 leads acquisition and 3-ch recording with high resolution thermal printer.

 4.3 inch Color TFT LCD display ECG wave and friendly menu setting.

 Support touch panel and keypad input ways

 Support SD card storage.

 120 seconds ECG wave freeze and replay function.

 Lead-off detection and alert

 Digital filtering, resisting baseline drift, AC and EMG interference

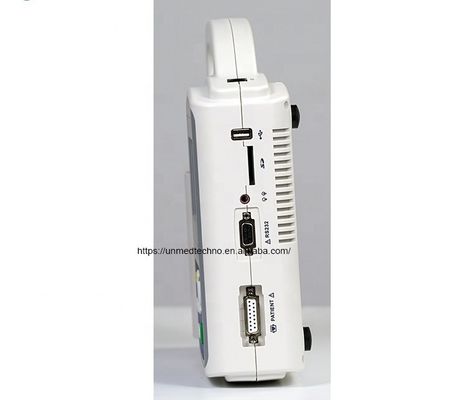

 Built in USB/RS232 interface(ECGNET software optional)

 Built in rechargeable Li-ion battery support less than 3 hours continuously work.

 AC power supply at 90-240V@50/60Hz

Specification

Lead	Standard 12 leads
Lead acquisition	16bit/24bit 1000Hz(synchronously 12 leads)
Work modes	MANUAL,AUTO modes
Filter	AC Flter : 50Hz / 60Hz EMG Filter : 35Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR	100dB (with AC filter)
Input circuit	floating; protection circuit against defibrillator effect
Input Impedance	≥50MΩ
Input circuit current	≤0.05μA
Input dynamic range	±5mVpp
Patient current leakage	＜10μA
Calibrating voltage	1mV±2％
Voltage tolerance	±600mV
Time constant	≥3.2s
Frequency response	0.05～150Hz(-3db)
Noise level	＜15μVp-p
Sensitivity valve	≤20μV
Sensitivity	2.5, 5,10,20mm/mV
Inter-channel Interference	≤0.5mm
Paper speed	5, 10, 12.5, 25, 50mm/s(±3％)
